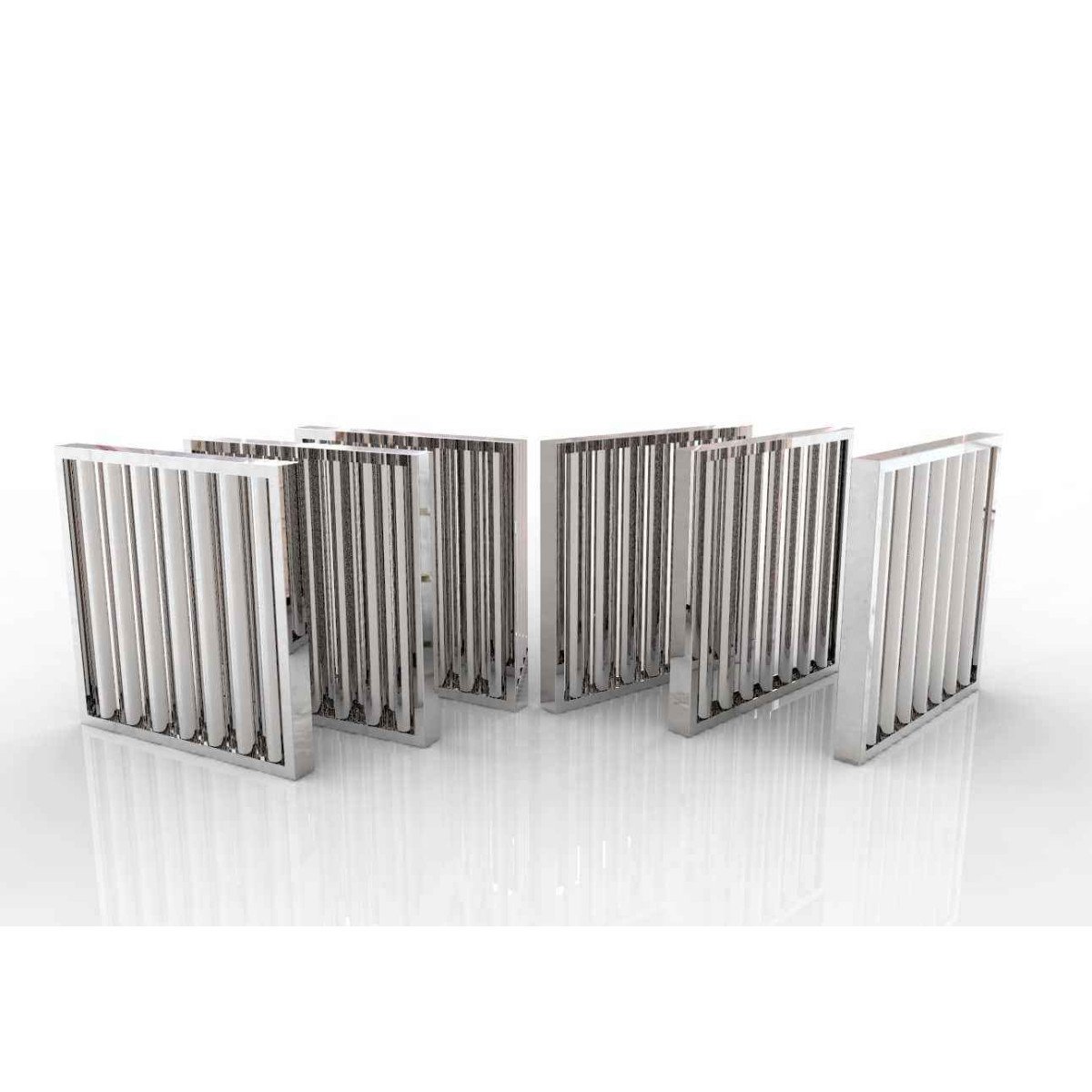

Commercial Kitchen Baffle Grease Filters 495mm Box Of 6
- Model: Box Baffle Filters
- Weight: 10.00kg
£250.00
Price in reward points: 18
Metric Dimensions: 495mm Width x 495mm Height x 45mm Thick
For use in commercial kitchens and ventilation to extract grease laden air and act as a fire barrier.
Fire barriers prevent any cooking flames traveling past the extract canopy. The new Type 2 is a development of
customers requesting certain attributes for the baffle filter, the main ones being rolled edges on frame and blades.
The Type 2 is available in 45mm depths only, this is required for the filter to operate at a constant
efficiency and to protect the system as a flame barrier as tested to European Standard DIN 18869-5.
The Type 2 Baffle design has a higher grease filtration efficiency than other baffle filters on the market due to the
blade design and spacing.
Velocity @ 0.4m/s is 25Pa
Velocity @ 0.6m/s is 50Pa
Velocity @ 0.7m/s is 80Pa
| VISUAL | |
| Material | Stainless Steel |
