Commercial Kitchen Extraction Canopy Kit 2000 mm
- Model: Commercial Kitchen Extraction Canopy Kit 2000 mm
- Weight: 55.00kg
- Dimensions: 2,000.00mm x 1,100.00mm x 500.00mm
£899.00
Available Options
Commercial Kitchen Extraction Canopy Kit 2000 mm
Contents

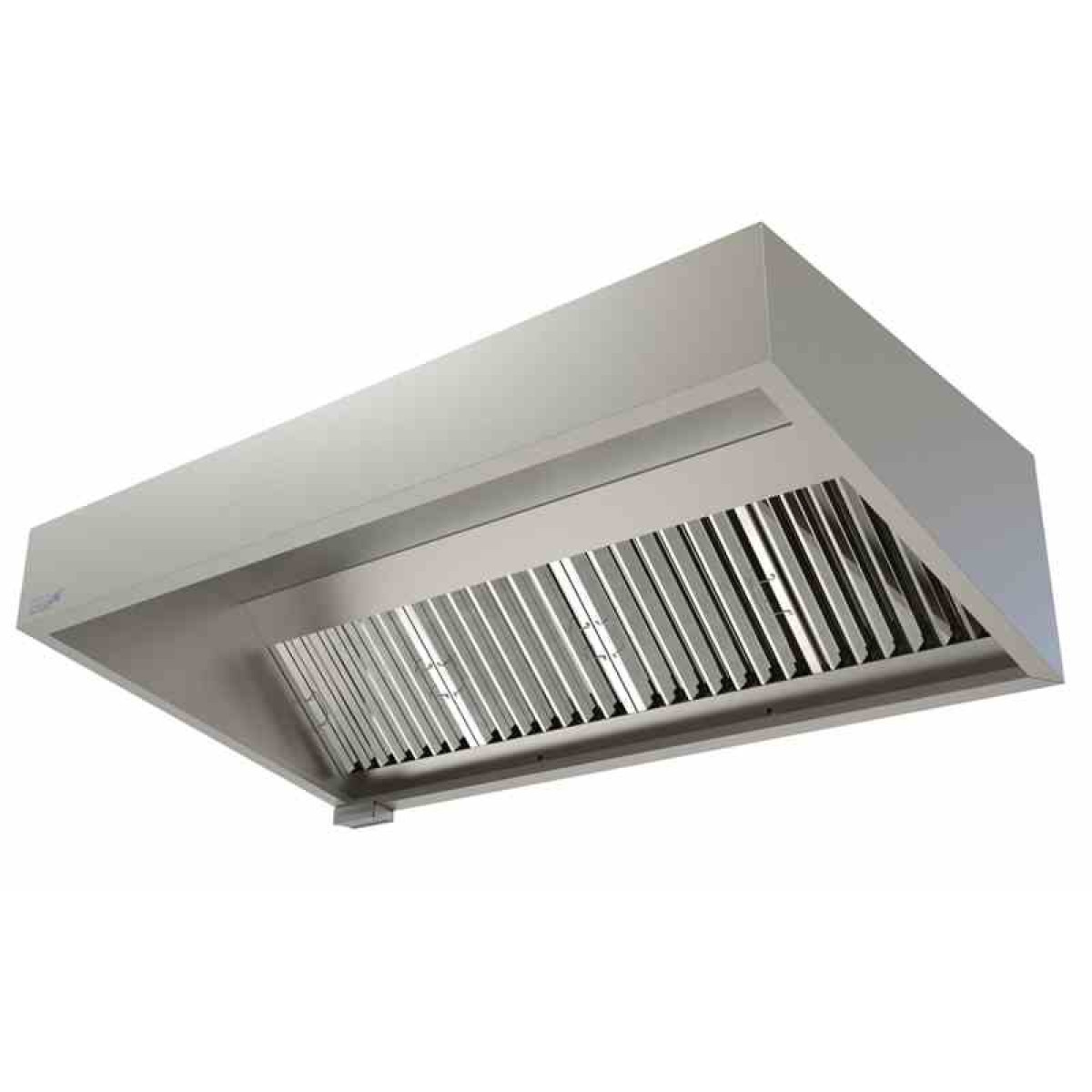

1off Stainless steel extraction canopy
1off axial inline mounted extractor fan 315mm diameter motor
1off Extractor fan Speed Controller
1off fan motor flange and wall liner
1off Short duct piece to connect the hood through the external wall to the outside, where the fan will connect.
1off Wall cowl - mesh end cut off - This prevents driving rain and things like birds entering into the pipe.
Canopy Dimensions
2000mm (Width) x 800mm (Depth)
Height: 500mm (Back) & 250mm (Front)
| ELECTRICAL | |
| Voltage | 220 Volts 50 Hz |
| Amps | Starting current = 4 Amps Full load current =2 Amp |
| TECHNICAL | |
| Dimensions | 2000mm (Length) x 1100mm (Depth) x 500mm (Back Height) / 250mm (Front Height) |
| Air Flow Pressure | 60 Pa |
| Air Flow Volume | 1800 m3/hour - 2235 m3/hour |
| Sound Pressure Level (dBA) | 60 dB(A) free field conditions |
| VISUAL | |
| Finish | Brushed Satin Finish |
| Material | Stainless Steel |
