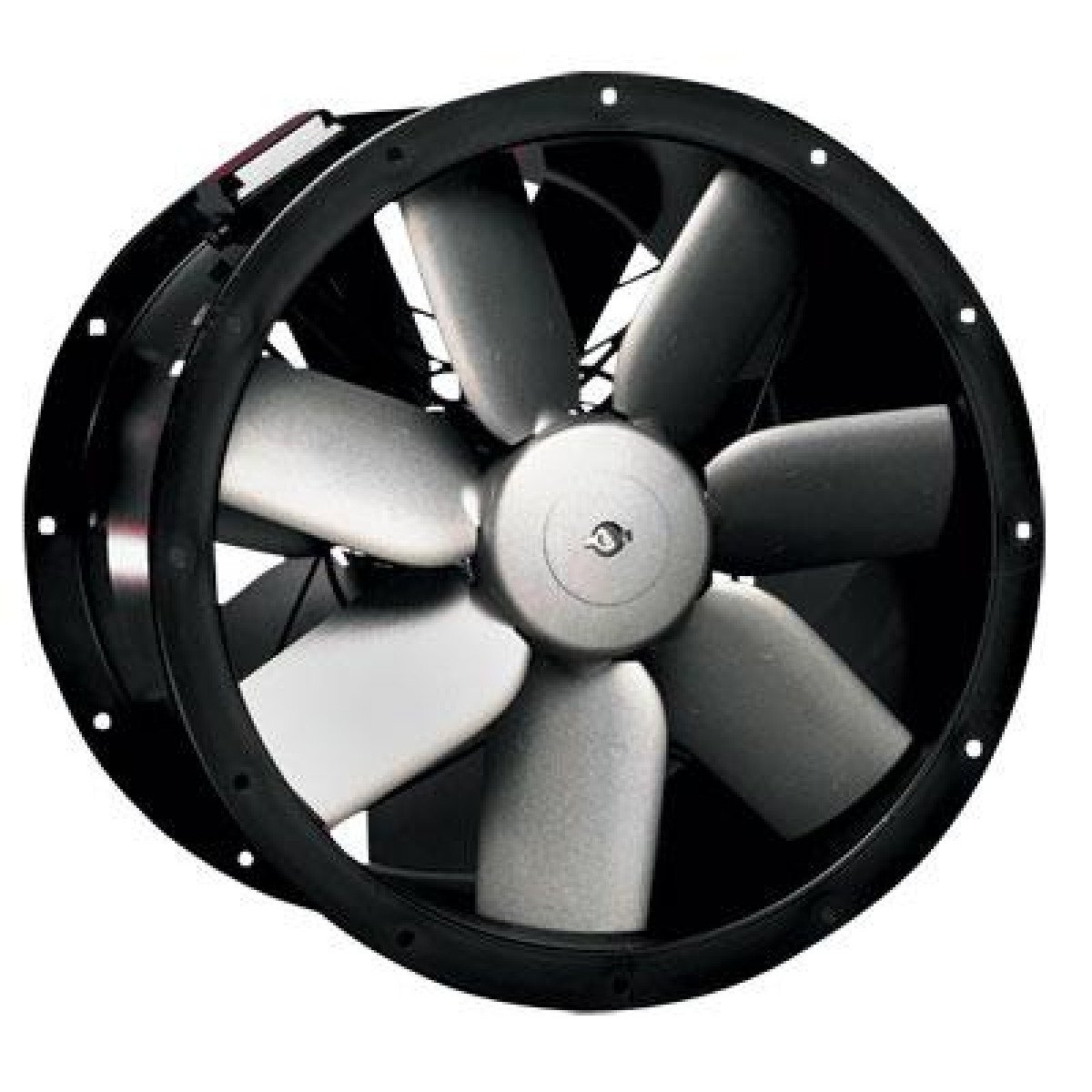

TCBBx2-450 Contra Rotating Turboprop Fan Cased axial IP65

TCBBx2-450 Contra Rotating Cased Axial Fan from Soler & Palau (Turboprop) - single phase IP65.

Develops high pressure for longer duct runs.

Often used in kitchen extract and greasy applications such as restaurants and takeaways.

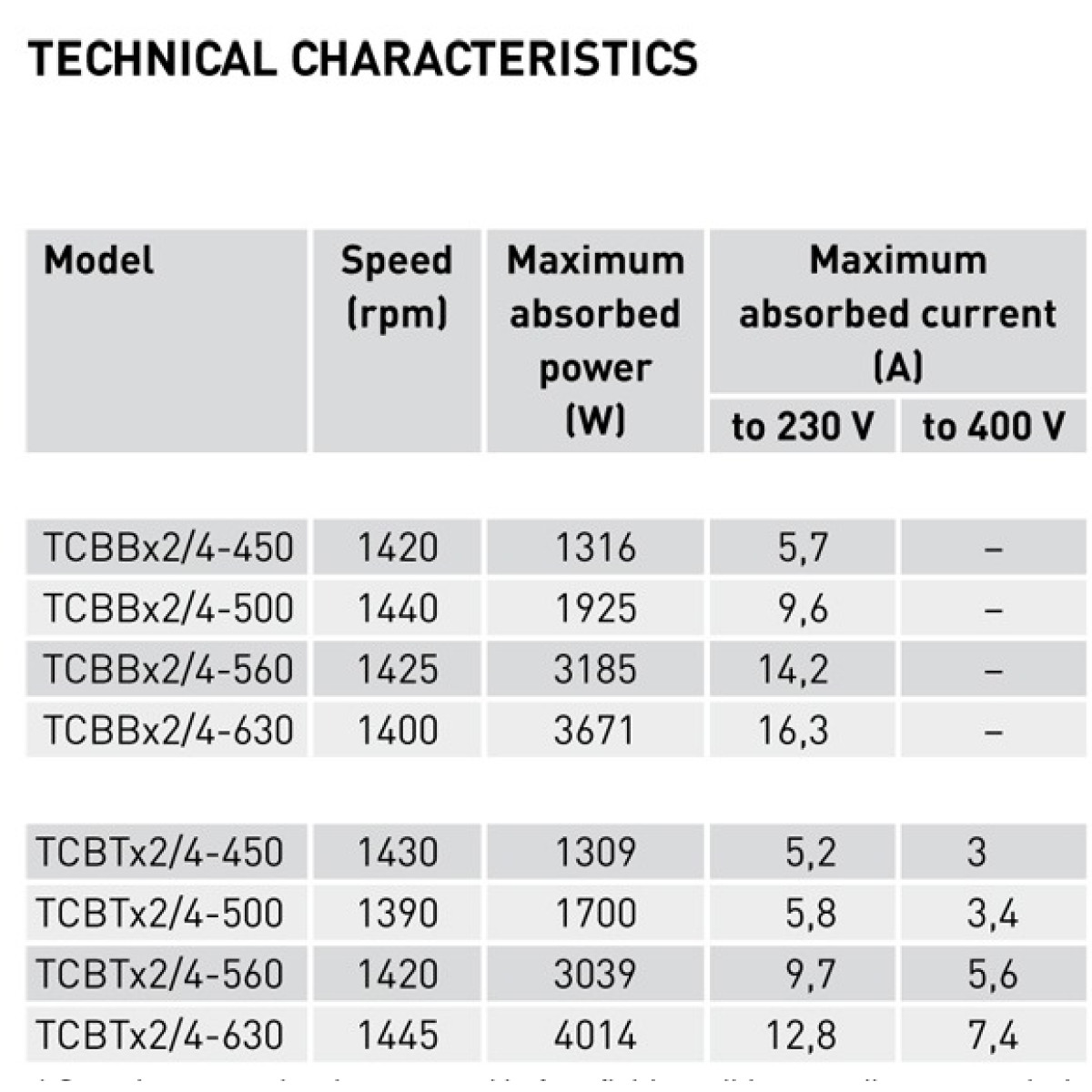

Max Duty - 7430 m3/hr

Max Power Absorbed - 1,316 W

The TCBBx2 range of cylindrical cased axial fans are fitted with aluminium impellers and manufactured from high grade rolled galvanised steel and protected against corrosion by cataforesis primer and black polyester paint finish. Used to be called TIPO.

Contra rotating TCBBx2 system with two complementary impellers allowing the duplication of the pressure with the same air volume, manufactured from die-cast aluminium.

All TCBBx2 models are supplied with pre-wired wiring junction box located on the outside of the fan casing for easy wiring access.

Available with single or three phase 4 poles motors.

Motors

~ All the motors are IP65, Class F insulation (1), equipped with thermal protection.

~ Single phase motors are variable voltage (for TCBBX2/4-630, only if the ambient temperature is up to 40 º C).

~ Three phase motors suitable for inverter control.

Electrical supplies:

~ Single phase 230V-50Hz. (Capacitor located inside the wiring terminal box).

~ Three phase 400V-50Hz

~ Working temperatures from -40ºC up to 70ºC.

Warranty:

Duration: The warranty is valid for two years from the date of purchase.

Coverage: It includes repair or replacement of defective parts due to manufacturing faults.

Exclusions: The warranty does not cover damage resulting from improper installation, misuse including temperature maximums, unauthorized modifications, or lack of maintenance.

Claim Process: To make a warranty claim, contact the authorized distributor providing proof of purchase and details of the defect.
